CANOPUS BELT CONVEYOR

Nido automation offers a complete range of conveyor solutions to move the materials up, down and across the warehouse. Our CANOPUS belt conveyors can handle pallets, cartons, bins, totes, bags and other types of items which are transported during inbound and outbound operations.

Designed, developed and manufactured in our state-of-the-art manufacturing unit in Nashik, Maharashtra, our conveyors are perfect mix of custom developed hardware and software which can be tweaked easily as per client’s needs. With our PAN India network, we are always committed to provide you quick sales and support anywhere anytime across the country.

Custom belt width and speed to suit your needs.
Inclined, declined, with or without cleat, with a variety of options.
Can be integrated with packing, weighing and dimensioning to provide a complete automation solution.

Straight Belt Conveyor

Z-type Belt Conveyor

Inclined Belt Conveyor

Spacing Belt Conveyor

Induction Belt Conveyor

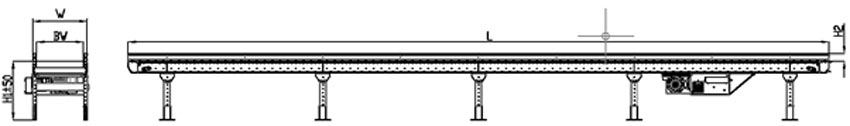

Straight Belt Conveyor (Bagging Conveyor)

The belt conveyor is used for the transport of unit loads, bags and parcels, that are not suitable for roller tracks. The standard belt conveyor is equipped with a gear motor and PVC Belt. Can be used as bidirectional conveyor.

General technical data	Max. load capacity	50 kg/m Max
	Conveyor speed	0.1 to 1 m/s
	Ambient temperature	0 to +40 °C
Drive	Rated voltage	440 V
	Electrical power	Max. 3 kW
	Drive Type	Gear motor with chain drive
Materials	Conveyor belt	Level: smooth, 2-layer, PVC
Materials	Slider bed	Zinc-plated sheet steel 2.5 mm Zinc-plated sheet steel 3 mm

*The combination of maximum values is not always possible.

L	Rated length range	Min 2500 mm to Max.10000 mm in increment of 500 mm
H1	Belt Height	500 mm to 1000 mm in increment of 100mm
H2	Side Guard Height	50/100/150/400 mm
BW	Belt Width	500 mm to 1200 mm
W	Total Width	BW+90mm
α	Inclination Angle	Max 6 degree

Notes-

• Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
• For Communication and interlock with panel please contact to Nido Representative

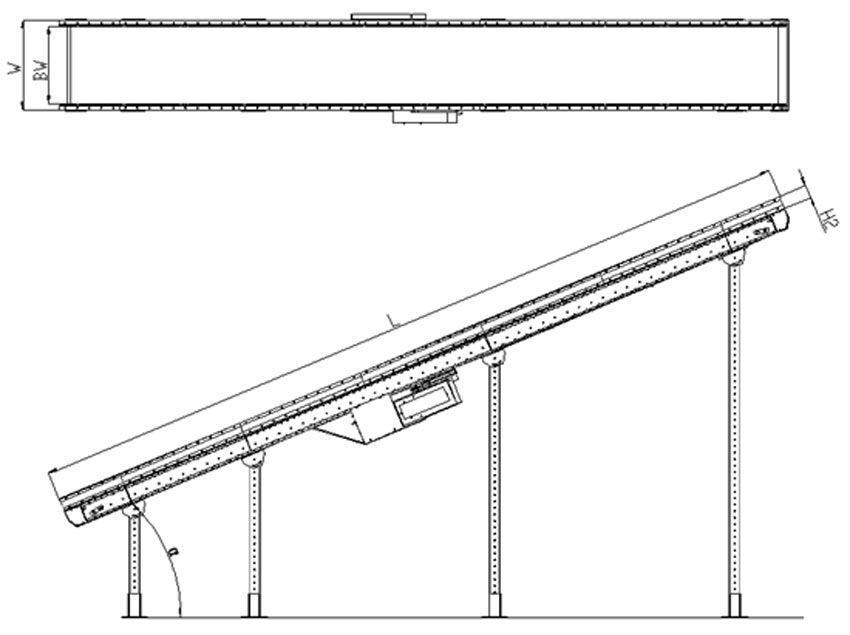

Inclined-declined Belt Conveyor

The incline belt conveyor is used for the transport of unit loads, bags and parcels, that are to be carried through different floor levels. All specification are as same as that of straight belt expect the PVC belt construction and power requirement. This is also Bi-directional Conveyor.

General technical data	Max. load capacity	50 kg/m Max
	Conveyor speed	0.1 to 1 m/s
	Ambient temperature	0 to +40 °C
Drive	Rated voltage	440 V
	Electrical power	Max.1.5 kW
	Drive Type	Gear motor with chain drive
Materials	Conveyor belt	Level: 2-layer, PVC Rising/falling gradient/ grooved longitudinally
Materials	Slider bed	2.5 mm Carbon Steel sheet

*The combination of maximum values is not always possible.

L	Rated length range	Min 2500 mm to Max 10000 mm in increment of 500 mm
α	Inclination Angle	Max 25 Degree
H2	Side Guard Height	50/100/150/400 mm
BW	Belt Width	500 mm to 1200 mm
W	Total Width	BW+90mm

Notes-
• Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
• For Communication and interlock with panel please contact to Nido Representative

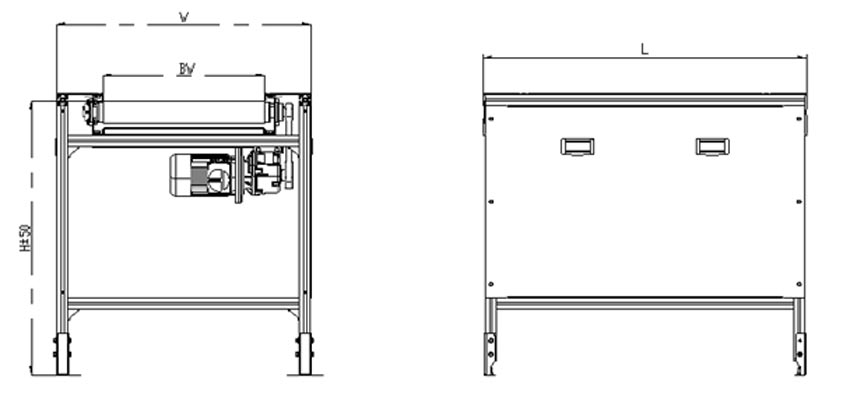

Spacing Conveyor

This type of conveyor is used to create gap between two consecutive parcels which may need weigh/scale/sort separately on succeeding conveyor.

General technical data	Max. load capacity	30 kg/m Max
	Conveyor speed	75 m/min
	Ambient temperature	0 to +40 °C
Drive	Rated voltage	440 V
	Electrical power	0.75 kW
	Drive Type	Gear motor with Timing Pulley belt
Materials	Conveyor belt	PVC Belt With long lead groove on top
Materials	Slider bed	2mm Carbon Steel Sheet

L	Length	Min 1200mm to Max. 3000 mm
H	Belt Top Height	500 mm to 1200 mm in increment of 100mm
BW	Belt Width	600 mm to 1200 mm
W	Total width	BW+340 mm

Note:-
• Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
• For Communication and interlock with panel please contact to Nido Representative

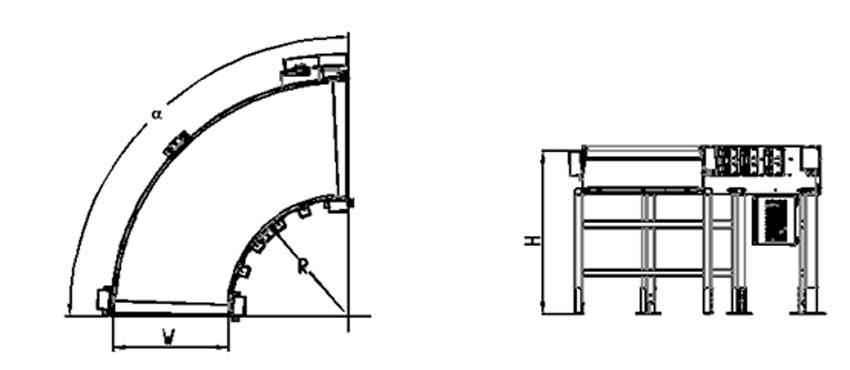

Curve PVC Belt Conveyor

The belt conveyor is used for the transport of loads through Curve path. Available in 30⁰, 60⁰, 90⁰as per requirement.

General technical data	Max. load capacity	50 kg/m Max
	Conveyor speed	30 m/min
	Ambient temperature	0 to +40 °C
Drive	Rated voltage	440 V
	Electrical power	0.37 kW
	Drive Type	Gear motor with chain drive
Materials	Conveyor belt	Modular Plastic Belt
	Slider bed	UHMW Wear Strip with Zinc-plated sheet steel 2.5 mm Zinc-plated sheet steel 3 mm

*The combination of maximum values is not always possible.

α	Available Curve Angle	Max 90° to 30° in increment of 30°
H	Belt Height	500 mm to 1000 mm in increment of 100mm
W	Belt Width	200 mm to 1400 mm
R	Min. Inner Radius	600 to 1400 mm

Notes-
• Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
• For Communication and interlock with panel please contact to Nido Representative
