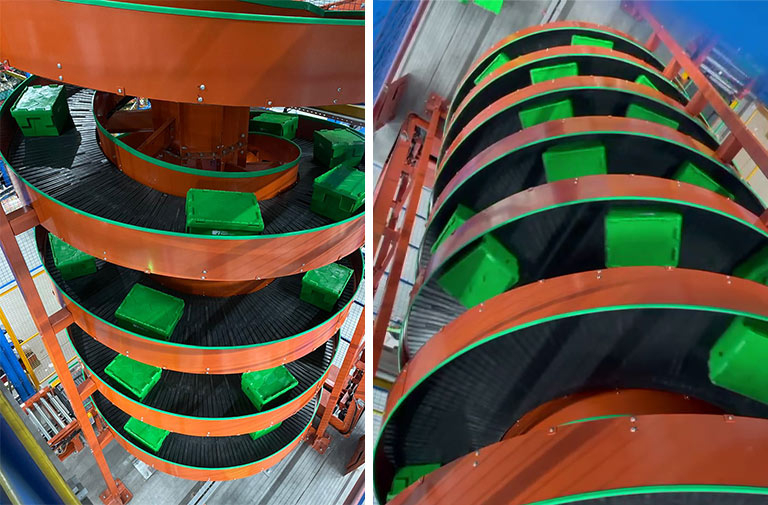

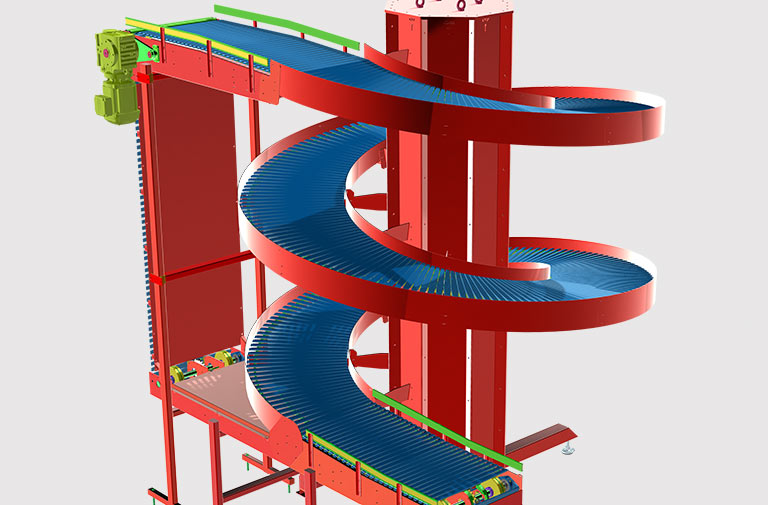

MOTORIZED SPIRAL CONVEYOR

Our CANOPUSVERT Motorized Spiral Conveyors can handle bags, totes, boxes and a variety of other products.

It can be used for bi-directional movement of goods between floors with a multi in – multi out capability. With a small foot-print it will help you optimize the available space efficiently.

With a high throughput of 1500 PPH it will increase the efficiency and cut labour cost to a great extent.

Request a Quote

Space Saving

With a low friction chain slot arrangements, the spiral conveyor operates within less space floor space.

High Throughput

Continuous up & down movement at a speed of 10-60 m per minute provides high throughput at utmost reliability.

Single Drive

With Only one drive motor, the system helps in substantial saving in energy and saves time during installation.

Low Maintenance

Designed for low maintenance and longer life, the Spiral Conveyor can work continuously without any downtime.

Technical Specifications

MOTORIZED SPIRAL CONVEYOR
Min. Parcel Size	100 x 100 x 10 MM
Max. Parcel Size	600 x 600 x 600 MM
Parcel Type NA	Box, Non-Box & Postal Package
Max. Speed	20 MPM
Max. Unit Load	75 KG
Pitch	1500 MM
Belt Width	900 MM
Power Supply NA	440 VAC, 50 Hz, 3 -Ø, 1.5 kW
Motor	Single Motor
Noise Level	< 75 DB
Traction	Upto 9 Mtrs
Max. Heigh	Upto 25 Mtrs
