PLASTIC MODULAR CONVEYOR

CANOPUS Plastic modular conveyor helps in automated material transport inside the warehouse and DC. Due to the modular structure, any minor damage to the conveyor can easily replaced. It can handle delicate items and prevent product damage.

The conveyors are fully made in India, manufactured at our manufacturing unit, Nashik. The hardware and software can be customized to suit your operation. With a PAN India service and support network, we are committed to provide you quick on-site support anytime anywhere.

Custom belt width and speed to suit your needs.
Inclined, declined, with or without cleat, with a variety of options.
Can be integrated with packing, weighing and dimensioning to provide a complete automation solution.

Straight Plastic Modular Conveyor

Curve Plastic Modular Conveyor

ZTR Plastic Modular Conveyor

Straight Plastic Modular Belt Conveyor

This conveyor used for conveying material in straight direction but parcel loading and unloading is allowed in lateral direction. The belt is kept on track by drive sprocket on drive shaft which avoids belt tracking issue in case of uneven loading along width of the conveyor. Can be used as sorting conveyor along with sorting arm. Not suitable for incline and decline

General technical data	Max. load capacity	100 kg/m Max
	Conveyor speed	75 m/min
	Ambient temperature	0 to +40 °C
Drive	Rated voltage	440 V
	Electrical power	5.5 kW max.
	Drive Type	Gear motor with chain drive
Materials	Conveyor Belt	Plastic Modular Belt with material Polypropylene/Acetal , Flat Top with Polypropylene connecting rods
	Structure Material	Zinc-plated steel sheet 3 mm for frame ,
		UHMWPE for belt sliding bed and return lines.

*The combination of maximum values is not always possible

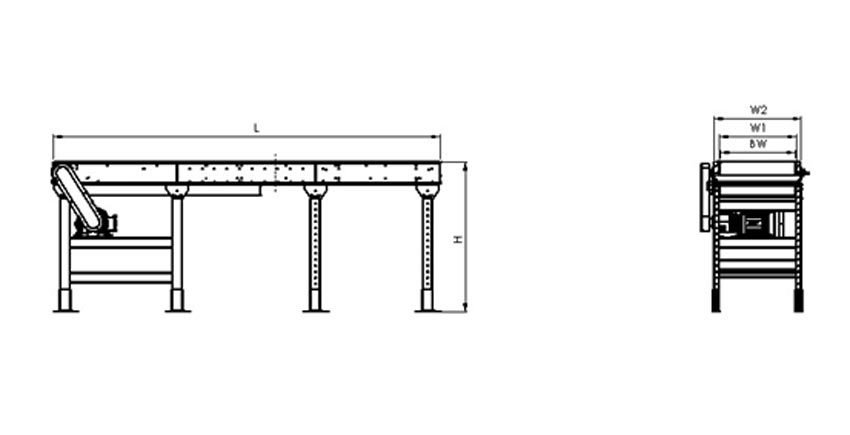

L	Length	Min 2000 mm to Max.25000mm in the increment of 1000 mm
H	Belt Top Height	500 mm to 1200 mm in increment of 100mm
BW	Belt Width	As per customer requirement
W1	Between the Frames	BW+22
W2	Total width	BW+102 mm

Curve Plastic Modular Conveyor

The curve modular belt conveyor is used for the transport of unit loads. The belt consists of plastic hinged links connected by plastic rods. The wide belts are woven together by links that are 102 mm, 124 mm, and 180 mm wide. The assembled belt forms a wide, flat, and tight conveyor surface. The belt has a minimal number of seams and has open hinges that are easy to clean.

General technical data	Max. load capacity	50 kg/m Max
	Max. load capacity per module	550 kg
	Conveyor speed	0.1 to 2.5 m/s
	Ambient temperature	0 to +40 °C
Drive	Rated voltage	440 V
	Electrical power	Max. 2 kW
	Drive Type	Gear motor with chain drive
Materials	Conveyor belt	Radius flush grid belt, the belt has a minimal number of seams and has open hinges that are easy to clean. The belt is white and is available with acetal pins for wet applications
Materials	Slider bed	UHMW Pad Strip

*The combination of maximum values is not always possible.

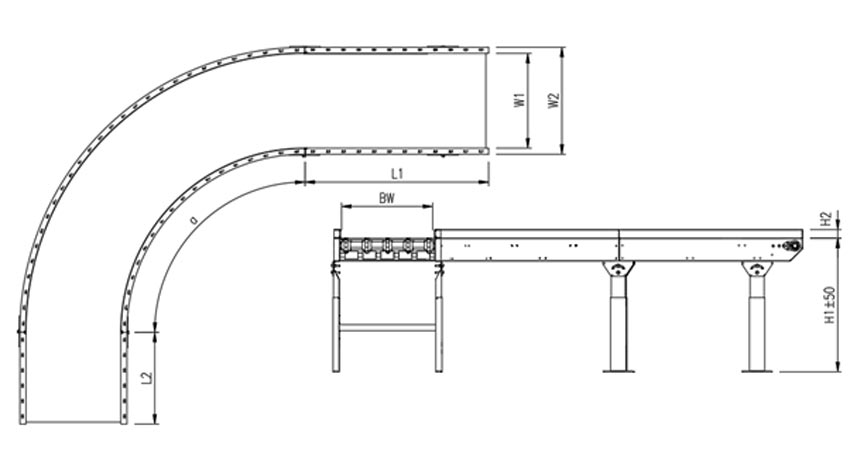

L1	Out feed length	Max BWX2
L2	In feed length	Max BWX1
H1	Belt Height	700mm
H2	Side Guard Height	50/100/150 mm
BW	Belt Width	600/800/1000 mm
W1	Belt Free movement Width	BW+20 mm
W2	Total Width	BW+100 mm
SP	Plastic Sprocket	Día- 100mm
WB	Wide belts (seams)	102 /124/180mm
PMP	Pin material Polyamide (PA)	600/800/100mm with lock

Notes-
• Module is completely assembled, maybe split into sections.
• Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
• For Communication and interlock with panel please contact to Nido Representative

ZTR Plastic Modular Conveyor

The Zero Tangent Radius Conveyor is designed to provide a curved appearance while maximizing the available space.

General technical data	Max. load capacity	50 kg/m Max
	Conveyor speed	30 m/min
	Ambient temperature	0 to +40 °C
Drive	Rated voltage	440 V
	Electrical power	0.37 kW min.
	Drive Type	Gear motor with chain drive
Materials	Conveyor belt	Modular Plastic Belt
Materials	Slider bed	UHMW Wear Strip with Zinc-plated sheet steel 2.5 mm Zinc-plated sheet steel 3 mm

*The combination of maximum values is not always possible.

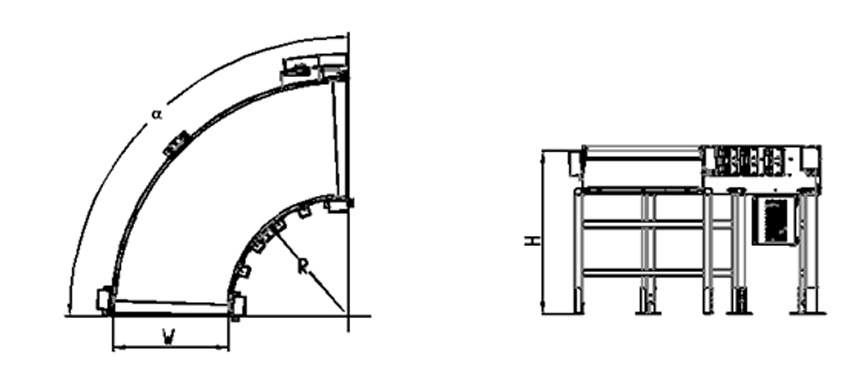

α	Available Curve Angle	Max180° to min 30° in increment of 30°
H	Belt Top Height	500 mm to 1000 mm in increment of 100mm
W	Belt Width	400 mm to 1200 mm
R	Min. Inner Radius	600 to 1000 mm

Notes-

• Comes with standard Variable frequency drive control panel with standard safety features and operator pendent.
• For Communication and interlock with panel please contact to Nido Representative
